Heave

To download the program, go to Shoring, the program is included in Shoring Suite.

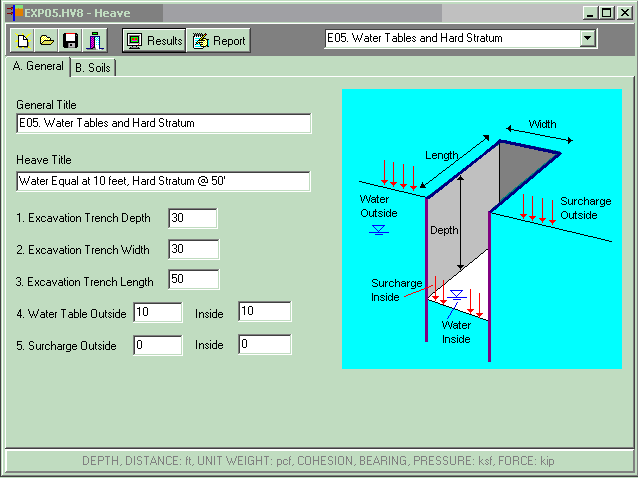

Heave is one of modules in Shoring Suite. It determines the stability of a vertical cut (excavation) in soft soils. Multiple layers, different water tables, and surcharge loads are taken into account. Heave can handle up to 5 different soil layers with surcharge loads and different water tables inside and outside braced cuts. If hard stratum is encountered, the failure surface can be automatically adjusted only through weak soils.

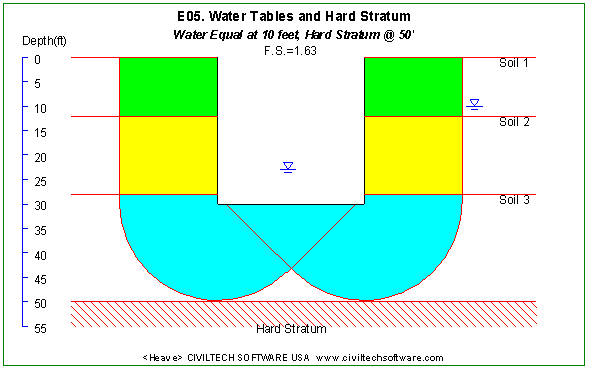

Heave uses Terzaghi's method. The factor of safety will be calculated and the failure surface will be presented graphically. This program is also included in SHORING Suite.

FEATURES

Windows Version
Calculates Quickly
Easy to use
English and Metric Units
User's manual with examples

REQUIREMENTS

IBM PC compatible 486 or better
Minimum system memory of 640K
Windows NT, 95, 98 and 2000
